Quick Details

  • Condition: New
  • Type: Double Drum Roller
  • Static Linear Pressure: 55/70N/cm
  • Travel Speed: 0-8km/h
  • Grade Ability: 30%
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: FURD
  • Model Number: FYL-900
  • Power(W): 25hp
  • Dimension(L*W*H): 2500*1200*1750mm
  • Weight: 1700kg/1500kg
  • Certification: CE,ISO9001,ISO1400
  • Engine: Perkins diesel/Honda Gasoline
  • Power: 25hp/20hp
  • Drive: Full Hydraulic Transimission
  • Steering: Hydraulic Steering
  • Vibration: Hydraulic vibration
  • Speed: Adjustable
  • Exciting force: 30KN
  • Vibration frequency: 65Hz
  • Application: Ride on Vibratory Roller
  • HS code: 84294019

Packaging & Delivery

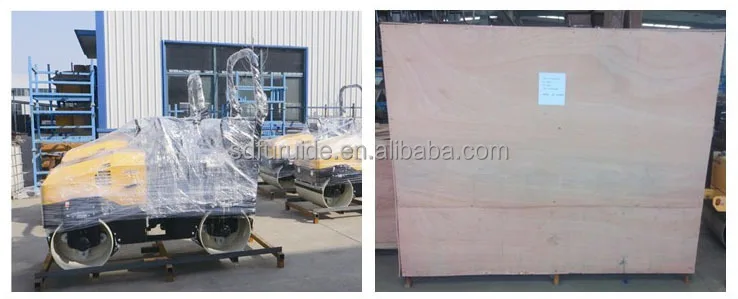

Packaging Details Ride on Vibratory Roller packed in wooden case
Delivery Time within 7-20 days upon receipt of deposit
Product Description

Product Application vibratory roller

Used for compaction of asphalt surface, compaction of gravel, sand and other projects.Vibratory Roller

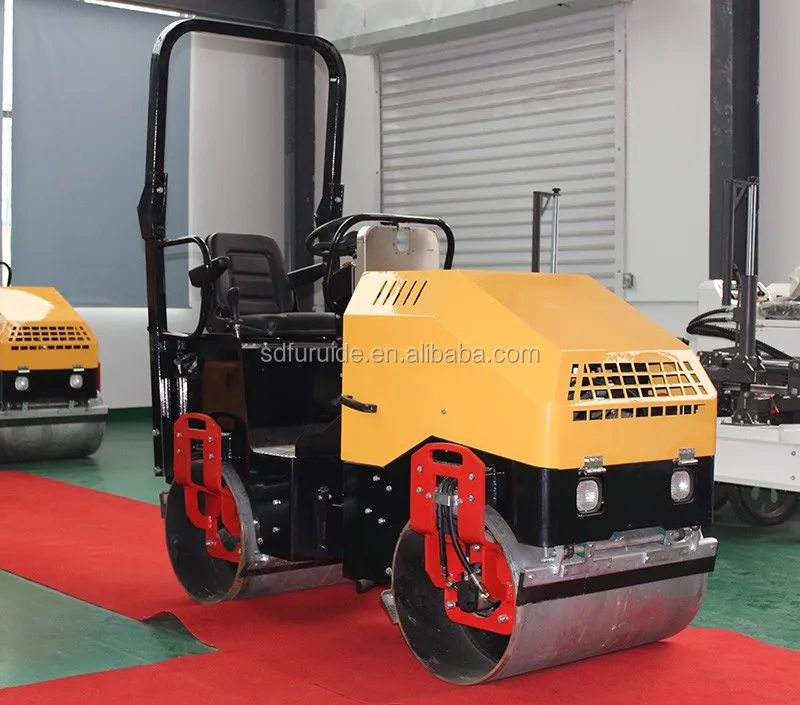

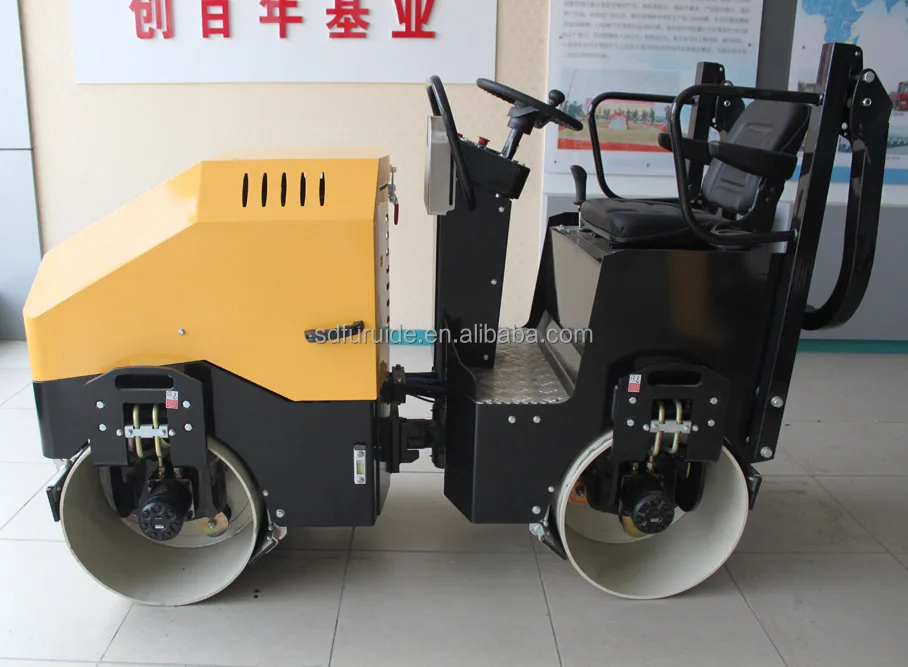

The ride on vibratory roller is small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn.Ride on Vibratory Roller
They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.Vibratory Roller

Technical Parameters for FYL-900 Vibratory Roller
Model
FYL-900
FYL-900G
Walk Speed
0-8km/h
0-8km/h
Climbing Capacity
30%
30%
Drive
Hydraulic transmission
Hydraulic transmission
Vibration type
Hydraulic vibration
Hydraulic vibration
Steering
Hydraulic steering
Hydraulic steering
Vibration frequency
65Hz
65Hz
Exciting force

30KN
30KN
Water tank
100L
100L
Hydraulic oil tank
60L
60L
Engine Model
Perkins diesel 403D-11
HONDA GX630
Power
25hp
20hp
Steel Wheel Size
560mm*900mm*2
560mm*900mm*2
Working Weight
1700kg
1500kg
Starting Mode
Hand and Electric
Hand and Electric

Main Features Ride on Vibratory Roller

1).Operating radius is small, can work in a small area;
2).HONDA petrol engine or famous diesel engine international brands, quality assurance,superior performance, easy start;vibratory roller
3).The use of international brandname SAUER hydraulic drive unit,variable speed,
reversing convenient;Ride on Vibratory Roller
4).Handrails using plane gear adjusting mechanism, flexible, can adapt to different height workers to operate;
5). NSK Bearings by internationally renowned, MITSUBOSHI (Samsung) belt,
to ensure that the work performance of the machine;Ride on Vibratory Roller

Detailed Images

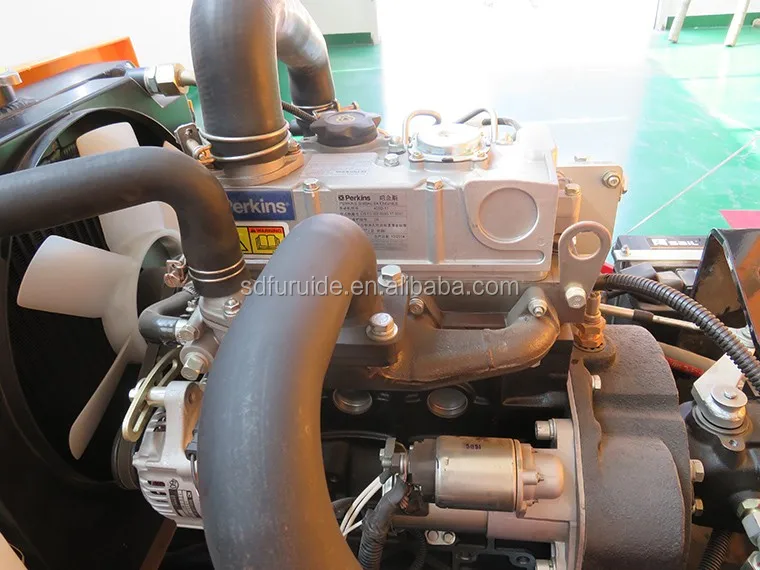

Perkins Diesel Engine

Name: Perkins 403D-11

Brand: Perkins

Original: England

Imported Perkins diesel engine or HONDA Gasoline engine,international brand,strong power,good quality.Ride on Vibratory Roller

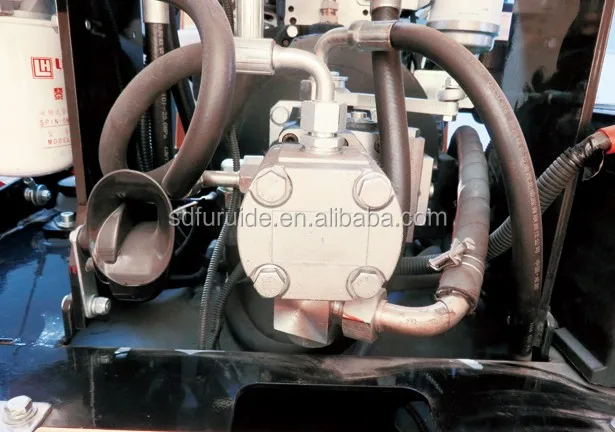

Imported Hydraulic Pump

Name: Hydraulic main pump
Brand: Poclain or HANSA-TMP
Original: Italy
Imported Italy Poclain or HANSA-TMP pump,famous brand,high performance.Ride on Vibratory Roller

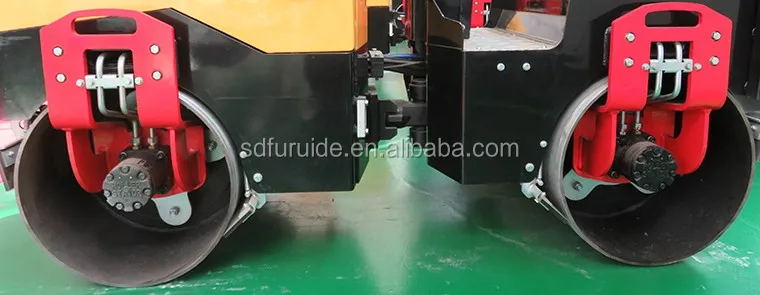

Hydraulic Double Drum Drive

Name: Imported hydraulic travel motor
Brand: White or Parker
Original: America
 Imported America White or Parker travel motor,durable and high performance.Ride on Vibratory Roller

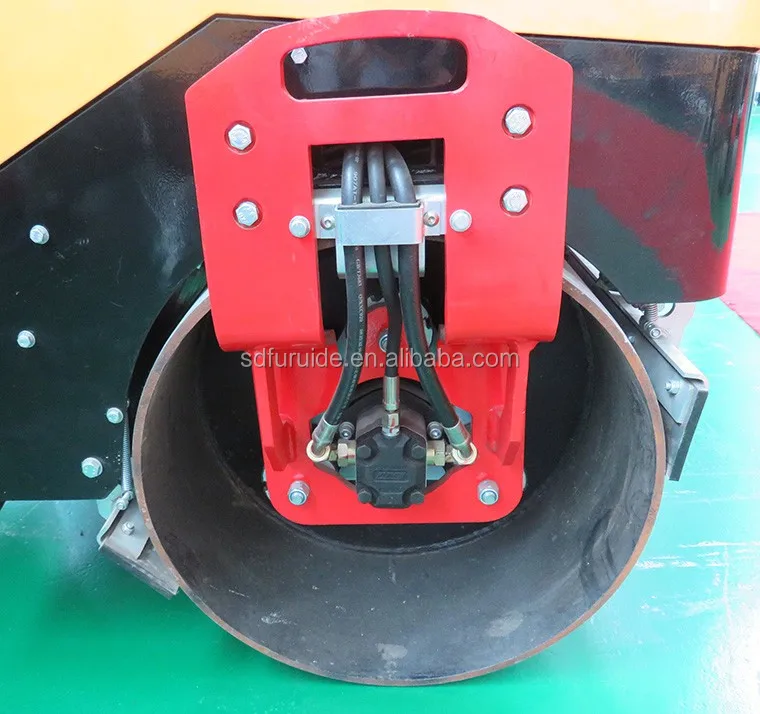

Hydraulic Vibration

Name: Hydraulic vibration motor
Brand: Permco
Original: America
Hydraulic vibration,good performance.Ride on Vibratory Roller
